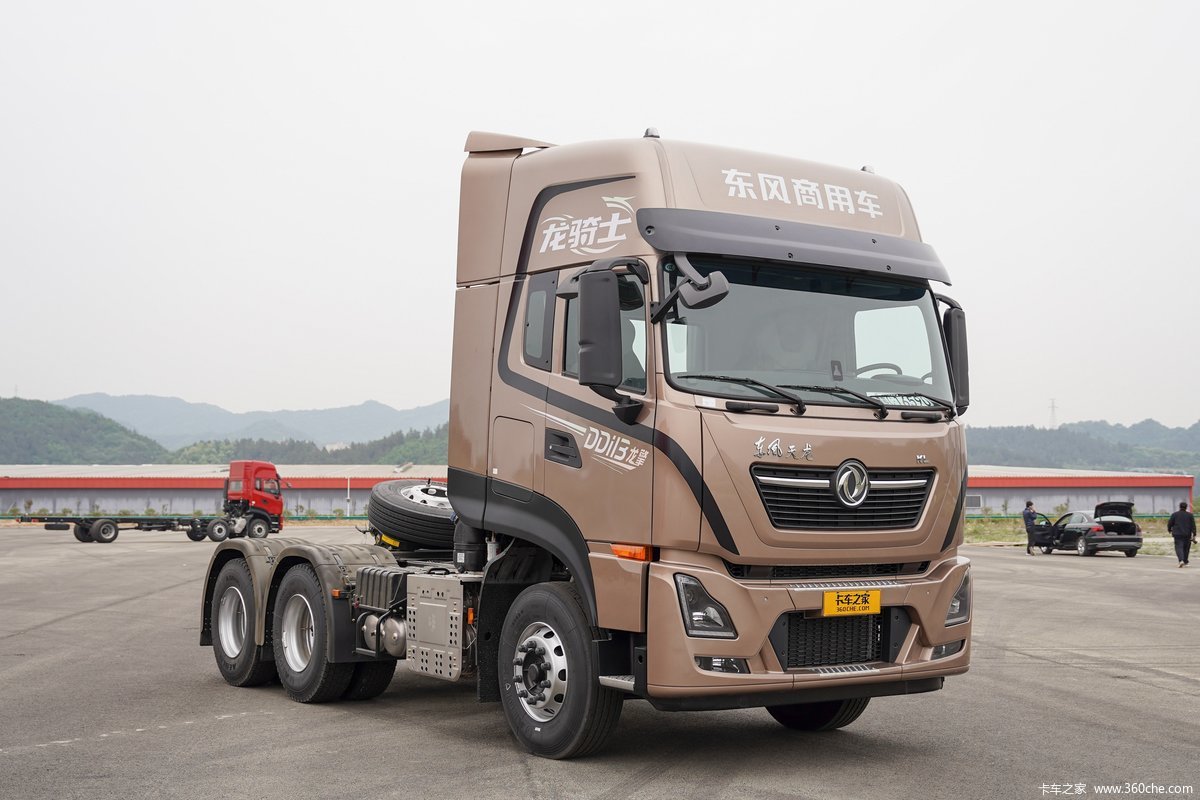

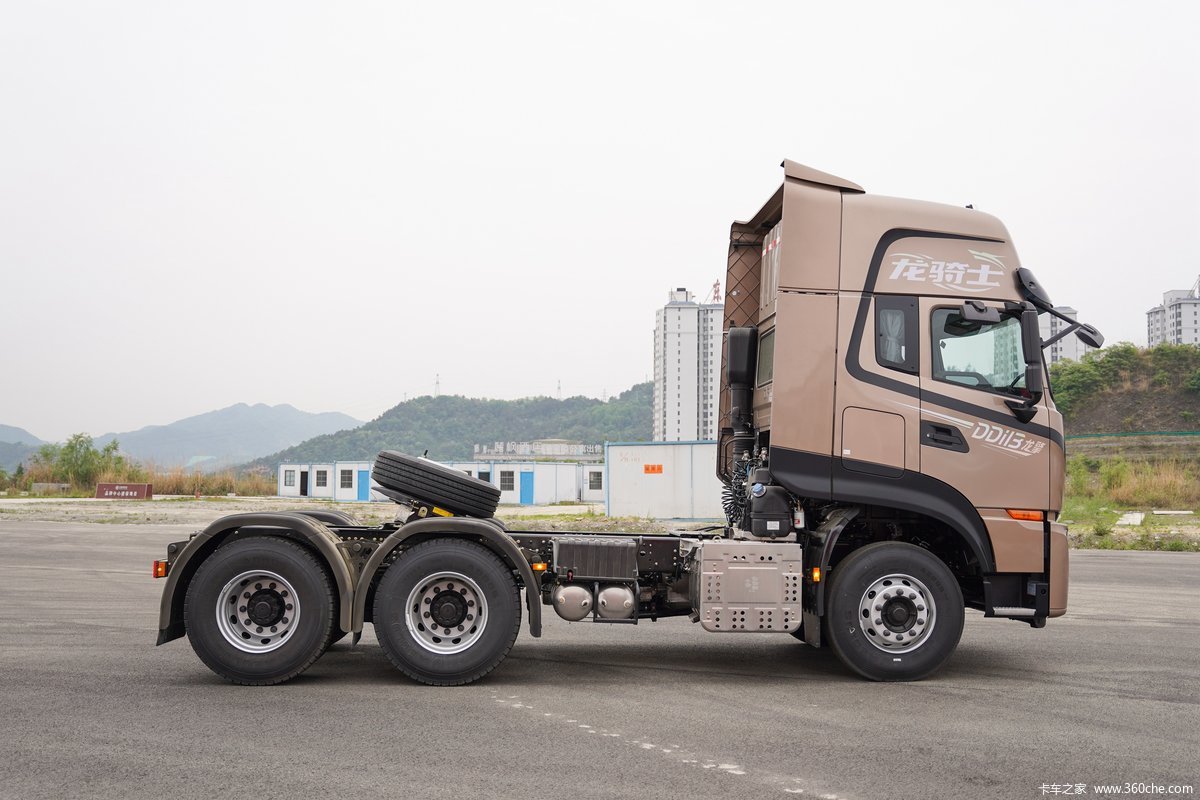

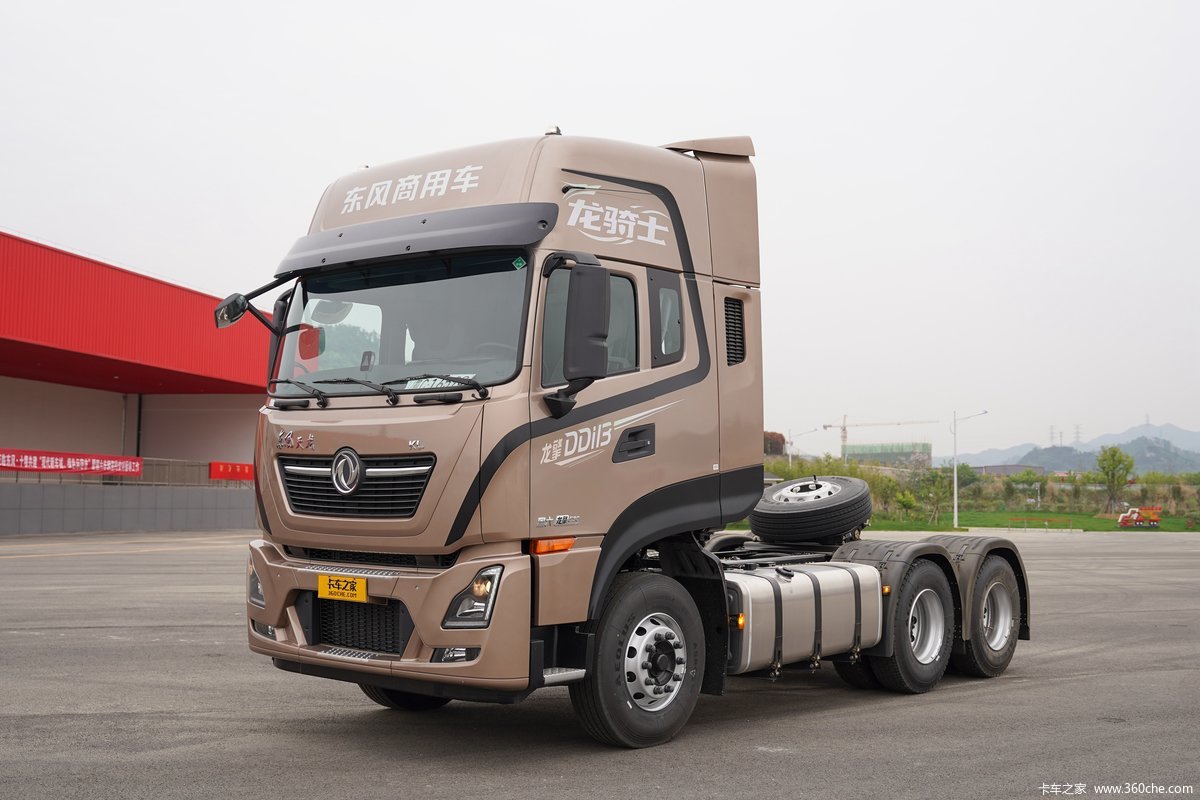

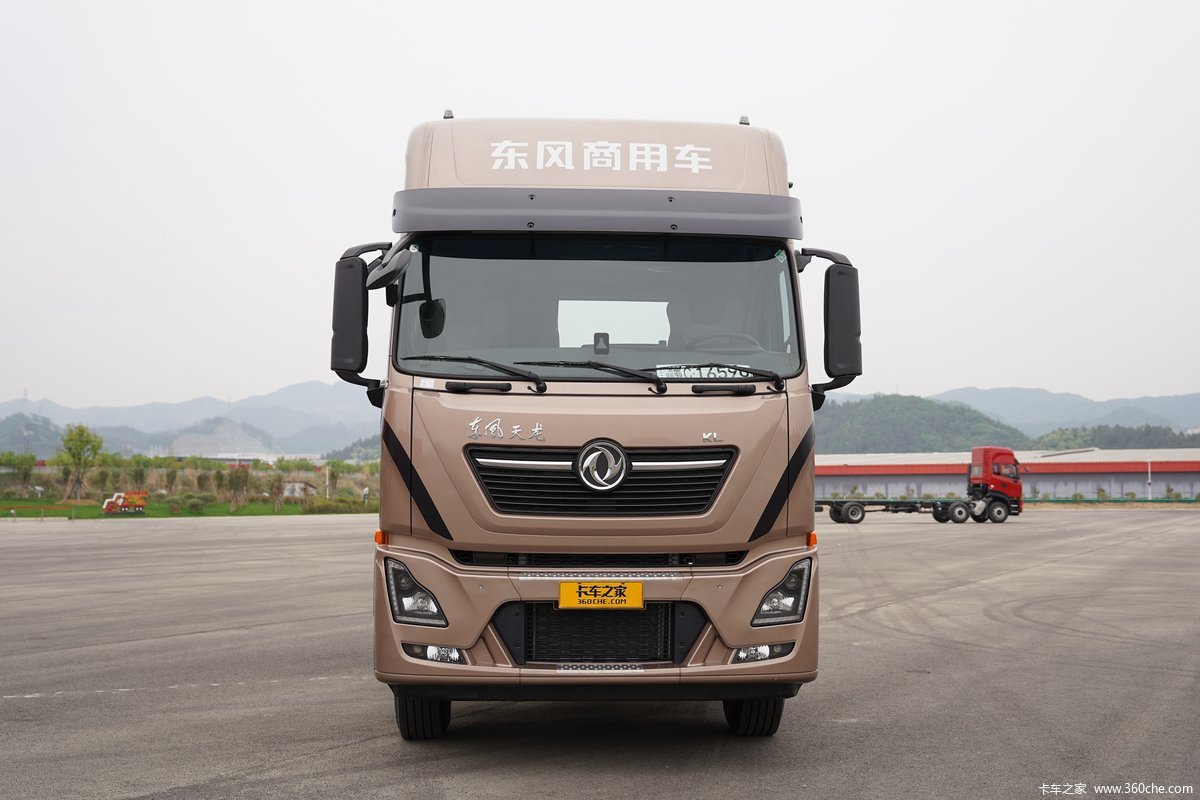

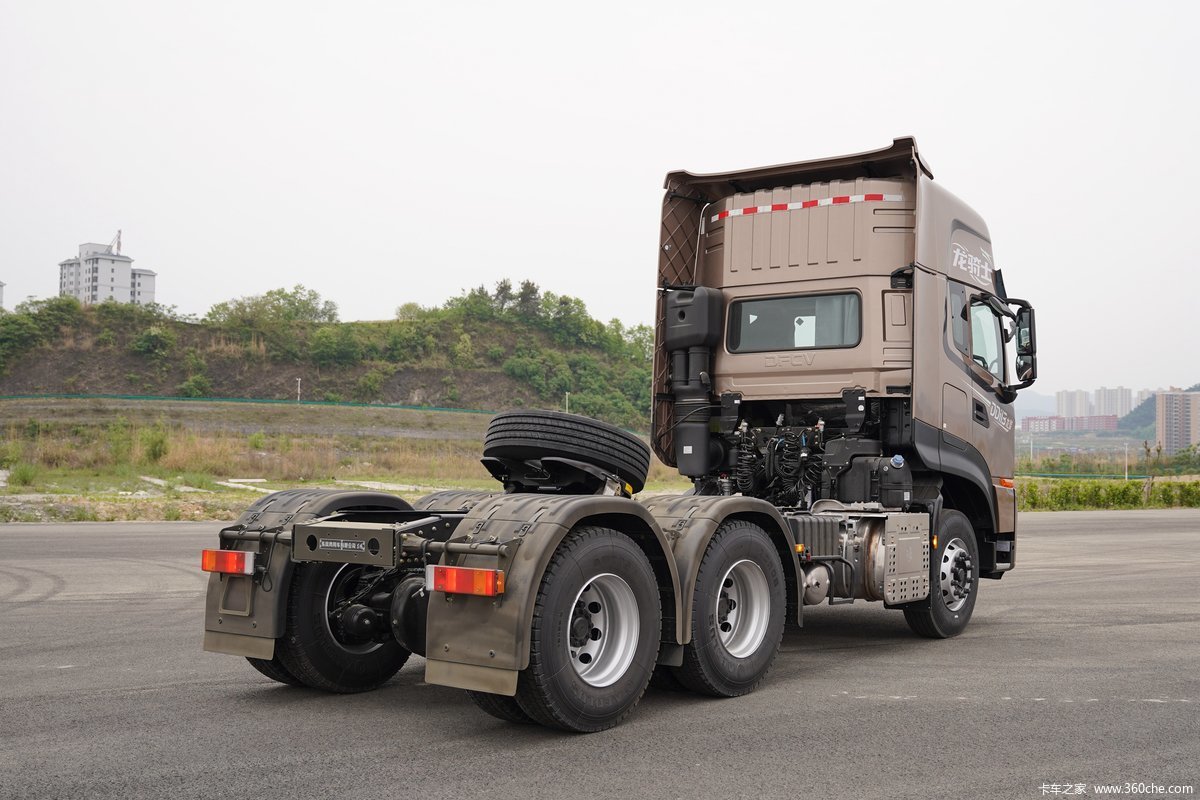

DONGFENG KL


Tractor Head 6x4

The Dongfeng KL is a heavy-duty truck produced by Dongfeng Motor Corporation, one of China's leading commercial vehicle manufacturers. It is designed for long-haul and heavy transport applications, featuring a robust chassis, powerful engine options, and advanced safety features. The truck is known for its reliability, fuel efficiency, and comfort, making it a popular choice for logistics and transportation companies. The KL series offers various configurations to cater to different operational needs, including different axle arrangements and cabin designs.

Description

01. Engine DCi 465 Euro 5 Renault (European tech)

Strong power: Maximum torque of 2200N.m/1100-1600r/min is the highest among the industry's 11L displacement engines.

02. Integral Balanced Suspension

Integrated balance suspension + U-bolt up-threading, higher reliability and more convenient maintenance.

03. Higher load-bearing capacity and reliability

Reinforced front axle + 25T Handel cast wheel axle, higher load carrying capacity.

04. Fast 12 Gears Box

Equipped with various operation protection systems, significantly increasing reliability. Adopting flexible gearshift technology, featuring good gearshift comfort, clear gears and lightweight operation.

05. Hydraulic Retarder + Exhaust Brake

Enhanced control and improved safety when navigating downhill slopes or carrying heavy loads. Maintaining a consistent speed while descending steep grades, ensuring better stability. Reducing maintenance costs.

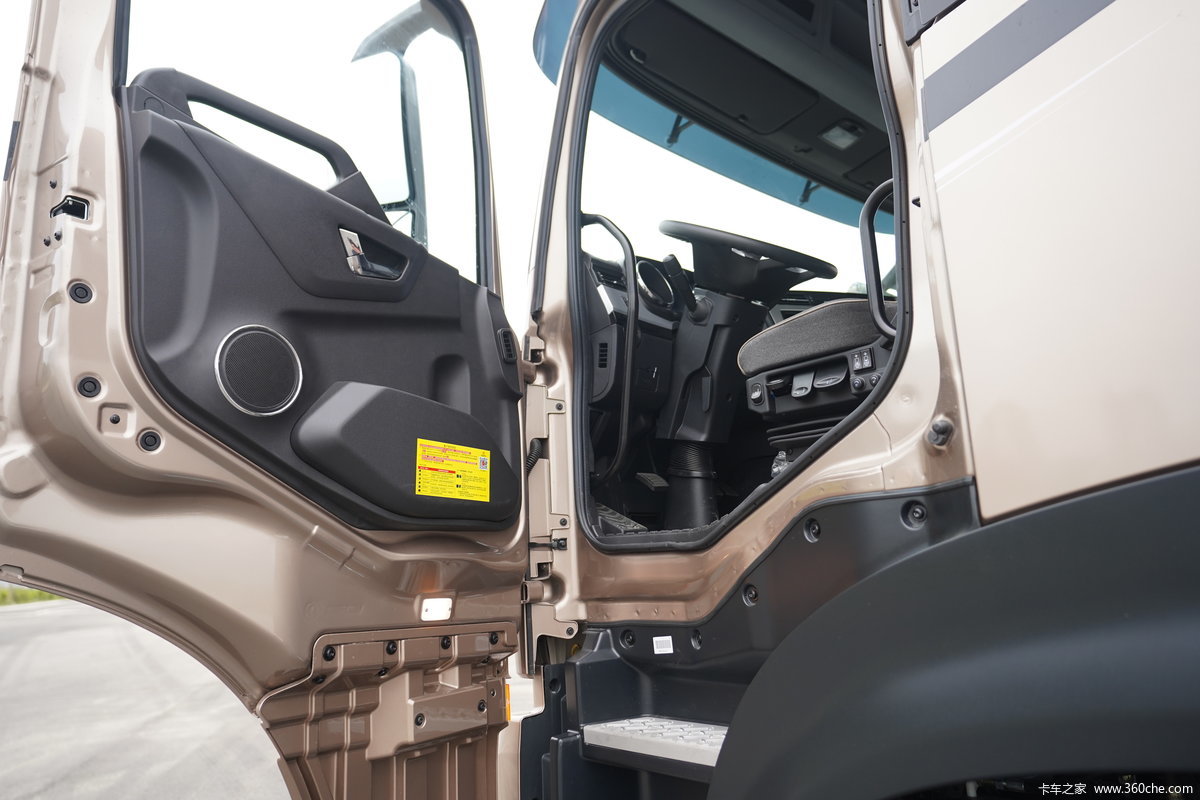

06. Spacious and Comfortable 0 Interior

The driver's airbag seat, a single-side armrest, integrated headrest, airbag lumbar support, and seat ventilation. The cab's interior is equipped with automatic air conditioning and parking heater.

Technical Specifications

Product Name:

KL 450 6x4 TH, KL 465 6x4 TH

Product type:

6x4 Tractor

Frame Profile Dimensions (mm):

300 x 90 x (8+8)

Tyres:

11R22.5 or 12.00R20

Ratios:

12.10 - 0.78

Brake System:

Full air brake system, split pneumatic circuit; parking spring brake acting on rear axles; ABS; Engine brake; optional Hydraulic

Cab:

Forward control type, high roof, bunk beds, all welded steel cab, electrical cab tilting, air cab suspension, air suspension adjustable driver’s seat, automatic air conditioning system, electric windows, central lock

Chassis Dimensions (mm):

Overall chassis length:

7040

Cab width:

2500 or 2550

Cab height (unladen):

3895

Wheel base:

3400 + 1350

Front overhang:

1480

Rear overhang:

810

Chassis Weight (kg):

G.C.V:

80000

Curb Weight (Vehicle/Chassis):

10700

Engine:

Engine type:

dCi450-51 or dCi465-51

Emission level:

Euro 5

Horse power:

450/465 HP

Maximum torque

2100Nm or 2200Nm

Number of cylinders

6

Displacement (lit)

11.12

Engine system

Water cooled, turbocharged, after cooled, high-pressure common rail fuel system + SCR

Clutch

Plate's diameter

φ430mm, Ceramic

Clutch system

Hydraulic control with air booster

Gear Box

Gear Type

12JSDX240TA

Number of gears

12 forward & 2 reverse

Axle

Axle front

Elliot type, I beam section, Load capacity: 7 ton

Axle rear

Single reduction, tandem axle, with axle lock and wheel lock, ratio 5.57 or 4.88, Load capacity: 16 ton X 2

Suspension

Suspension front

9 Leaf spring

Suspension rear

13 Leaf spring

Battery

Voltage (V)

24

Baterry capacity (A.h)

165 X 2

Fuel Tank

Fuel tank type

Aluminium fuel tank, with lockable cap

Capacity

600L
