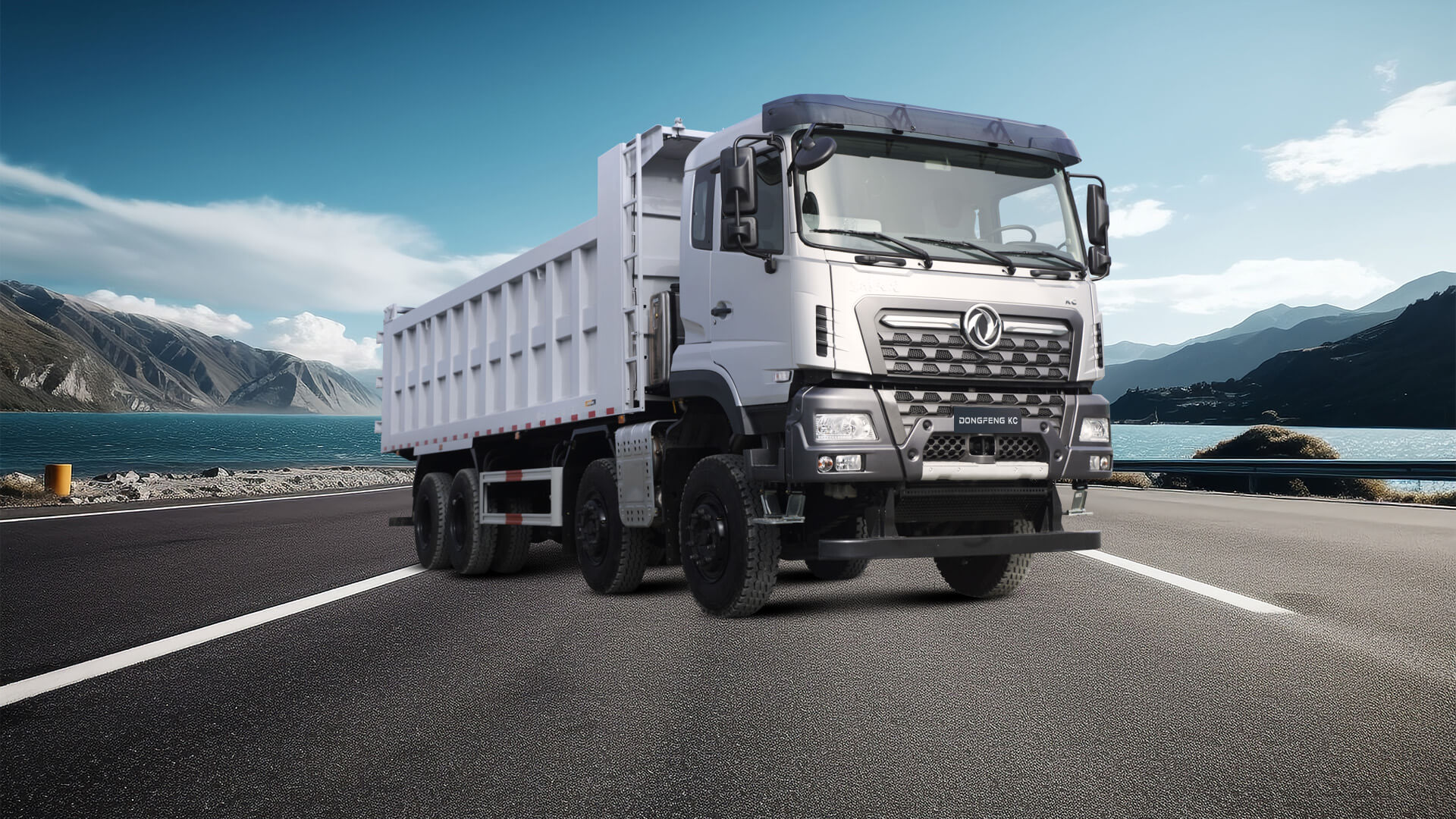

KC DUMPER 6x4


Euro 2

The Dongfeng KC Dumper delivers impressive performance with its powerful drivetrain, ensuring efficient operation. Its meticulously engineered structure provides reliable load capacity, while the professional design guarantees better trafficability across various road conditions. These features make the Dongfeng KC Dumper an optimal choice for demanding hauling needs.

Description

01. Engine: Cummins LK375 33

Strong power: Maximum torque of 1600N.m at 1400r/min.

02. Integral Balanced Suspension

Integrated balance suspension + U-bolt up-threading, higher reliability and more convenient maintenance.

03. Higher load-bearing capacity and reliability

Reinforced front axle + 25T Handel cast wheel axle, higher load carrying capacity.

04. Fast 12 Gears Box

Equipped with various operation protection systems, significantly increasing reliability. Adopting flexible gearshift technology, featuring good gearshift comfort, clear gears and lightweight operation.

05. Hydraulic Retarder + Exhaust Brake

Enhanced control and improved safety when navigating downhill slopes or carrying heavy loads. Maintaining a consistent speed while descending steep grades, ensuring better stability. Reducing maintenance costs.

06. Spacious and Comfortable 0 Interior

The driver's airbag seat, a single-side armrest, integrated headrest, airbag lumbar support, and seat ventilation. The cab's interior is equipped with automatic air conditioning and parking heater.

Technical Specifications

Ratios:

15.53 - 1.00

Tyres:

12.00R20

Cab:

sleeper cab, forward control type, low roof, new face, all welded steel cab of tilt type, electromotionl cab tilting, rear mechanical cab suspension, adjustable driver's seat, air conditioning system

Brake System:

Full air brake system, split pneumatic circuit; parking spring brake acting on rear axle, exhaust brake

Size of body:

29cbm

Dimension:

5800 x 2500 x 1800, 5800 x 2500 x 2000,

Product Name:

KC 375 6x4 DT

Product type:

6x4 Dumper

Chassis Dimensions (mm):

Overall chassis length:

7800

Cab width:

2500

Cab height (unladen):

3210

Wheel base:

4050+1350

Front overhang:

1500

Rear overhang:

900

Chassis Weight (kg):

GVW:

55000 kg

Curb weight:

15400 kg

Payload:

39600 kg

Frame Profile Dimensions (mm):

Frame width (front):

940

Frame width (rear):

860

Section height:

300

Section width:

90

Engine:

Engine type:

Cummins LK375 33

Emission level

Euro 2

Horse power

375 HP / 276kw et 2000 rpm

Maximum torque

1600Nm at 1400 rpm

Number of cylinders

6

Displacement (lit)

9,5

Cylinder bore (mm)

116,5

Stroke (mm)

148

Engine system

Water cooled, turbocharged, after cooled

Gear Box

Gear Type

FAST 12JSD180T

Number of gears

12 forward gears & 2 reverse, synchronized

Clutch

Clutch type

SACHS

Plate's diameter

430mm

Clutch system

Hydraulic control with air booster, pulling

Axle

Axle front

Elliot type, I beam section load capacity: 9 ton

Axle rear

Hub reduction, tandem axle, with axle lock and wheel lock, ratio 5.92 load capacity: 25 ton x 2

Suspension

Suspension front

10 Leaf spring with shock absorber

Suspension rear

12 Leaf spring

Fuel Tank

Fuel tank type

Steel fuel tank

Capacity

350 litres

Battery

Baterry capacity (A.h)

165x2

Voltage (V)

24
